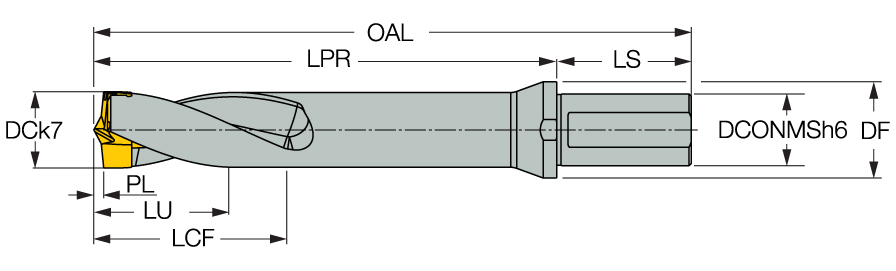

| Usable Length (LU) | 1.96″ | Overall Length (OAL) | 10.22″ |
| Shank Type | Weldon | Shank Length (LS) | 2.36″ |
| Application | | Drilling | | Coolant Supply Property (CSP) | Coolant Thru |
| Tool Type | Indexable Insert Drills | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Master Insert Identification (MIID) | IFHP 330-BD |
| Insert Seat Size Code (SSC) | 33.0 | Point Length (PL) | 0.167″ |
| Cutting Diameter Minimum (DCN) | 1.299″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 1.338″ | Flange Diameter (DF) | 1.693″ |
| Protruding Length (LPR) | 7.858″ |
Product Features

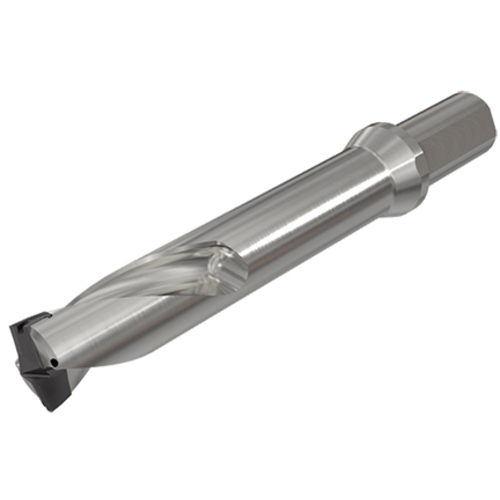

| Family Description | Exchangeable head drills with a reinforced body and a flat shank, diameter ratio 5xD, for construction beam industry | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Package Weight
1602
