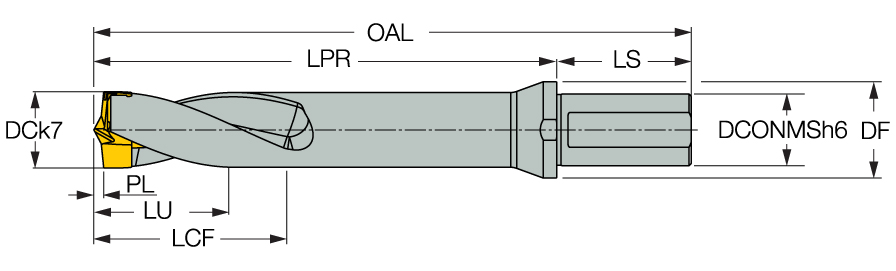

| Usable Length (LU) | 50 mm | Overall Length (OAL) | 259.6 mm |
| Shank Type | Weldon | Shank Length (LS) | 60 mm |
| Application | | Drilling | | Coolant Supply Property (CSP) | Coolant Thru |
| Tool Type | Indexable Insert Drills | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Master Insert Identification (MIID) | 33 |
| Insert Seat Size Code (SSC) | 33.0 | Point Length (PL) | 4.25 mm |
| Cutting Diameter Minimum (DCN) | 33 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 33.99 mm | Flange Diameter (DF) | 43 mm |
| Protruding Length (LPR) | 199.6 mm |
Product Features
| Family Description | Exchangeable head drills with a reinforced body and a flat shank, diameter ratio 5xD, for construction beam industry | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Package Weight
1607
