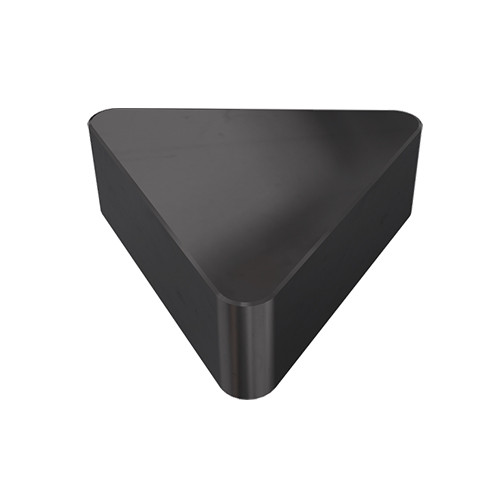

TNGN 222S-S BI30KC
| Application | | Ext. 60° Triangle 93° Approach | Int. 60° Triangle 91° Approach | | Tool Type | Turn Positive Inserts |
| Insert Style | TNGN | Min D.O.C. | 0.002″ |
| Corner Radius (RE) | 0.0315″ | Depth of Cut Maximum (APMX) | 0.197″ |
| Insert Size | 222 | Min. Turning Feed (ft(min)) | 0.00196 ″/rev |
| Cutting Edge Length (L) | 0.433″ | Max. Turning Feed (ft(max)) | 0.01968 ″/rev |
| Insert Thickness (S) | 1/8″ | Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 1/4″ | Body Material | Carbide |
| Grade | BI30KC |
Product Features
| Family Description | Negative 60° triangular solid top CBN for cast iron machining | Country of Origin | Germany |
| Remarks | For dimensions and tolerances, see more info. |
