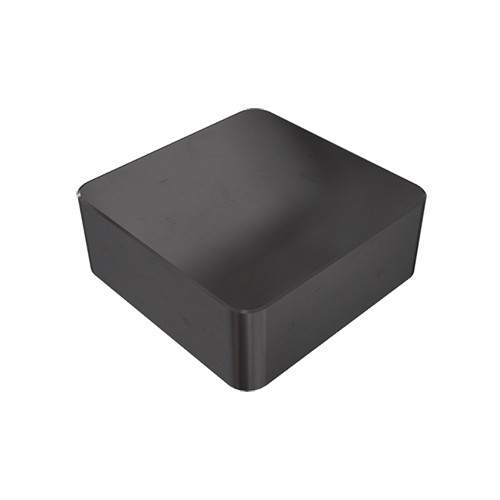

SNGN 434S-S BI30KC
| Application | | Ext. 90° Square 45° Approach | Ext. 90° Square 75° Approach | Ext. 90° Square 75° Face Appr. | Ext. 90°Square 45°Face&Turn Ap | Facing | Int. Square 75° Approach | Shouldering | Slanted Shoulder & Chamfer | | Tool Type | Turn Positive Inserts |
| Insert Style | SNGN | Min D.O.C. | 0.002″ |
| Corner Radius (RE) | 0.063″ | Depth of Cut Maximum (APMX) | 0.197″ |
| Insert Size | 434 | Min. Turning Feed (ft(min)) | 0.00196 ″/rev |
| Cutting Edge Length (L) | 1/2″ | Max. Turning Feed (ft(max)) | 0.01968 ″/rev |
| Insert Thickness (S) | 0.187″ | Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 1/2″ | Body Material | Carbide |
| Grade | BI30KC |
Product Features
| Family Description | Negative square solid CBN inserts for cast iron machining | Country of Origin | Germany |
