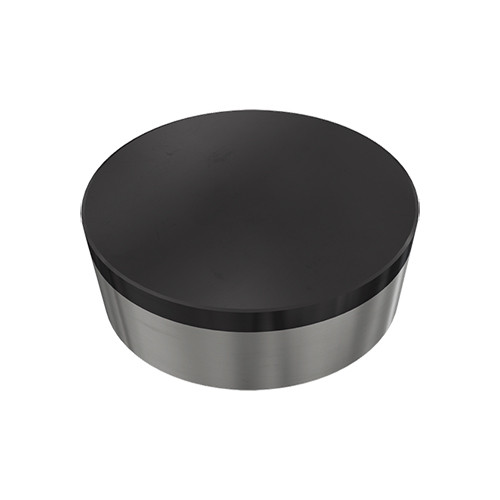

RCGN 320S-HS BI30H
| Applicable Material | | Cast Iron | Hard Materials | | Tool Type | Turn Positive Inserts |
| Application | | Ext. Round Face & Turn | | Min D.O.C. | 0.002″ |
| Insert Style | RCGN | Depth of Cut Maximum (APMX) | 0.02″ |
| Insert Size | 320 | Min. Turning Feed (ft(min)) | 0.00196 ″/rev |
| Insert Thickness (S) | 1/8″ | Max. Turning Feed (ft(max)) | 0.01181 ″/rev |
| Inscribed Circle Diameter (IC) | 3/8″ | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Material | PCBN | Measurement Type | Inch |
| Grade | BI30H | Body Material | Carbide |
Product Features
| Family Description | Positive round type half solid top CBN inserts | Country of Origin | Germany |
| Remarks | For dimensions and tolerances, see more info. |
