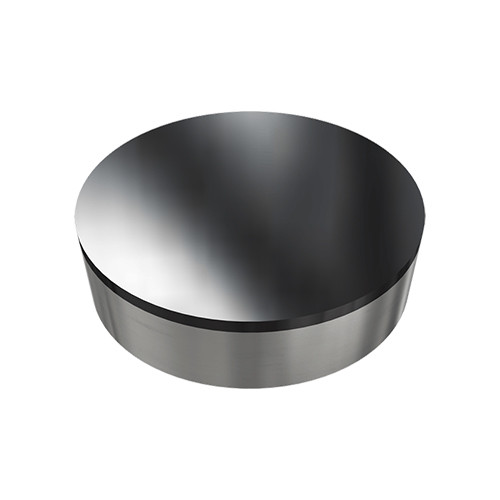

RBGN 430F-HS ID5
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Tool Type | Turn Positive Inserts |
| Application | | Ext. Round Face & Turn | | Min D.O.C. | 0.002″ |
| Insert Style | RBGN | Depth of Cut Maximum (APMX) | 0.157″ |
| Insert Size | 430 | Min. Turning Feed (ft(min)) | 0.00118 ″/rev |
| Insert Thickness (S) | 0.187″ | Max. Turning Feed (ft(max)) | 0.02362 ″/rev |
| Inscribed Circle Diameter (IC) | 1/2″ | Clearance Angle Major (AN) | 5 Degrees |
| Cutting Edge Material | PCD | Measurement Type | Inch |
| Grade | ID5 | Body Material | Carbide |
Product Features
| Family Description | Positive round type half solid top CBN inserts | Country of Origin | Germany |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.033
