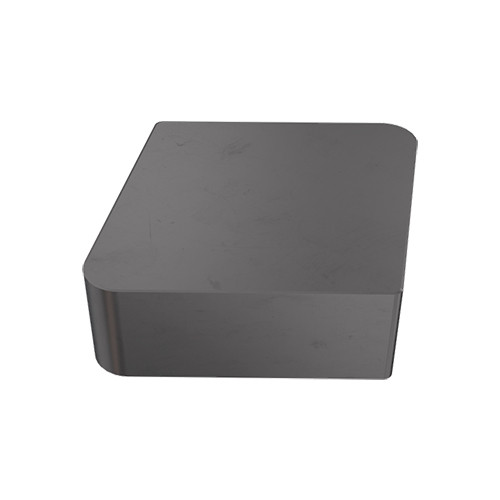

CNGN 434S-S BI30KC
| Application | | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 95° Approach | | Tool Type | Turn Positive Inserts |
| Insert Style | CNGN | Min D.O.C. | 0.002″ |
| Corner Radius (RE) | 0.063″ | Depth of Cut Maximum (APMX) | 0.197″ |
| Insert Size | 434 | Min. Turning Feed (ft(min)) | 0.00196 ″/rev |
| Cutting Edge Length (L) | 0.508″ | Max. Turning Feed (ft(max)) | 0.01968 ″/rev |
| Insert Thickness (S) | 0.187″ | Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 1/2″ | Body Material | Carbide |
| Grade | BI30KC |
Product Features
| Family Description | Negative 80° rhombic solid CBN inserts for high-feed high-depth roughing & high-speed finishing of cast Iron | Country of Origin | Germany |
