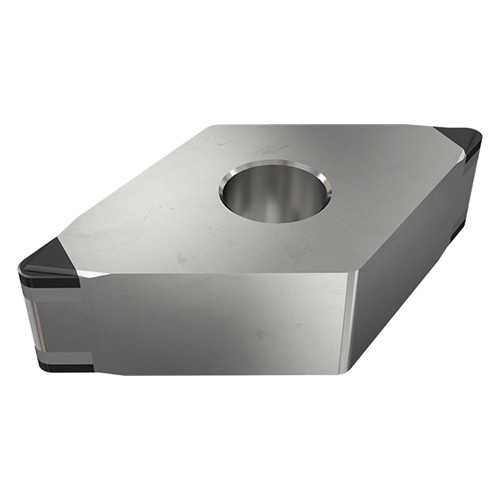

DNGA 431S-4MT MM BI25H
| Applicable Material | | Hard Materials | | Grade | BI25H |
| Application | | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 91° Approach | Ext. 55° Diamond 93° Approach | Int. 55° Diamond 93 95° Approac | | Fixing Hole Diameter (D1) | 0.217″ |
| Insert Style | DNGA | Tool Type | Turn Positive Inserts |
| Corner Radius (RE) | 0.0157″ | Min D.O.C. | 0.002″ |
| Insert Size | 431 | Depth of Cut Maximum (APMX) | 0.016″ |
| Cutting Edge Length (L) | 0.61″ | Min. Turning Feed (ft(min)) | 0.00196 ″/rev |
| Insert Thickness (S) | 0.187″ | Max. Turning Feed (ft(max)) | 0.00984 ″/rev |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Cutting Edge Material | PCBN | Body Material | Carbide |
Product Features
| Family Description | Negative 55° rhombic inserts with 4 MM chipbreaking CBN mini tips for hardened steel and cast iron | Country of Origin | Germany |
| Remarks | For dimensions and tolerances, see more info. |
