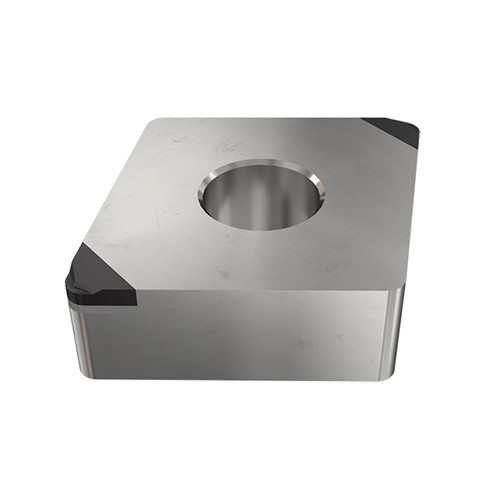

CNGA 432S-2MT MM BI25HC
| Applicable Material | | Hard Materials | | Fixing Hole Diameter (D1) | 0.217″ |
| Application | | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 95° Approach | | Tool Type | Turn Positive Inserts |
| Insert Style | CNGA | Min D.O.C. | 0.002″ |
| Corner Radius (RE) | 0.0315″ | Depth of Cut Maximum (APMX) | 0.016″ |
| Insert Size | 432 | Min. Turning Feed (ft(min)) | 0.00196 ″/rev |
| Cutting Edge Length (L) | 0.508″ | Max. Turning Feed (ft(max)) | 0.00984 ″/rev |
| Insert Thickness (S) | 0.187″ | Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 1/2″ | Body Material | Carbide |
| Grade | BI25HC |
Product Features
| Family Description | Negative 80° rhombic inserts with 2 MM chipbreaking CBN mini tips for hardened steel and cast iron | Country of Origin | Germany |
Shipping Info
Package Weight
0.035
