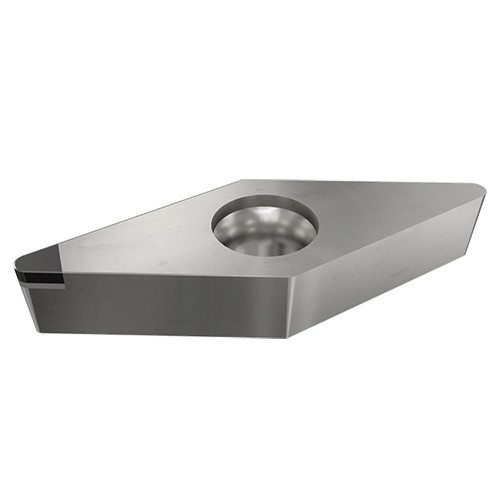

VBGW 21.51S-MT BI25H
| Applicable Material | | Hard Materials | | Fixing Hole Diameter (D1) | 0.11″ |
| Application | | Ext. 35° Diamond 112° Approach | Ext. 35° Diamond 117° Approach | Ext. 35° Diamond 72.5° Approac | Ext. 35° Diamond 91° Approach | Ext. 35° Diamond 93° Approach | Int. 35° Diamo 95° Back Approa | Int. 35° Diamond 107.5°Approa | Int. 35° Diamond 95° Approach | | Tool Type | Turn Positive Inserts |
| Insert Style | VBGW | Min D.O.C. | 0.002″ |
| Corner Radius (RE) | 0.0157″ | Depth of Cut Maximum (APMX) | 0.02″ |
| Insert Size | 21. | Min. Turning Feed (ft(min)) | 0.00196 ″/rev |
| Cutting Edge Length (L) | 0.437″ | Max. Turning Feed (ft(max)) | 0.00984 ″/rev |
| Insert Thickness (S) | 0.094″ | Clearance Angle Major (AN) | 5 Degrees |
| Inscribed Circle Diameter (IC) | 1/4″ | Measurement Type | Inch |
| Cutting Edge Material | PCBN | Body Material | Carbide |
| Grade | BI25H |
Product Features
| Family Description | Positive 35° rhombic inserts with a single CBN mini tip for hardened steel and cast iron | Country of Origin | Germany |
| Remarks | For dimensions and tolerances, see more info. |
