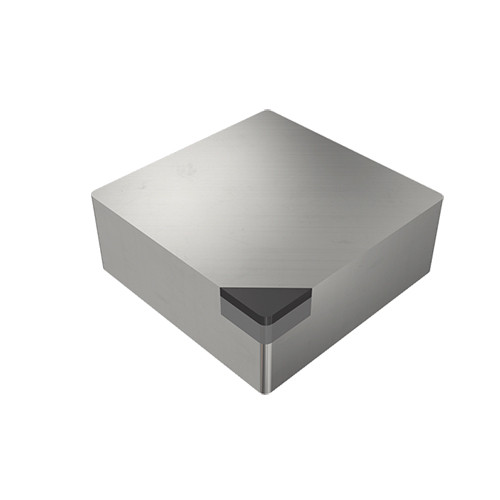

SNGN 431F-MT ID4
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Coating | UNCOATED |
| Application | | Ext. 90° Square 45° Approach | Ext. 90° Square 75° Approach | Ext. 90°Square 45°Face&Turn Ap | Int. Square 75° Approach | | Grade | ID4 |
| Insert Style | SNGN | Tool Type | Turn Positive Inserts |
| Corner Radius (RE) | 0.0157″ | Min D.O.C. | 0.002″ |
| Insert Size | 431 | Depth of Cut Maximum (APMX) | 0.02″ |
| Cutting Edge Length (L) | 1/2″ | Min. Turning Feed (ft(min)) | 0.00118 ″/rev |
| Insert Thickness (S) | 0.187″ | Max. Turning Feed (ft(max)) | 0.02362 ″/rev |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Cutting Edge Material | PCD | Body Material | Carbide |
Product Features
| Family Description | Negative square inserts with a single PCD mini tip, used for finishing aluminum and other non-ferrous materials. | Country of Origin | Germany |
| Remarks | For dimensions and tolerances, see more info. |
