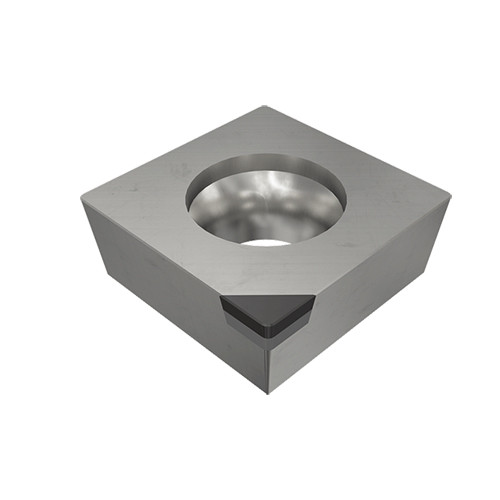

SCGW 432S-MT BI15HC
| Applicable Material | | Hard Materials | | Fixing Hole Diameter (D1) | 0.217″ |
| Application | | Ext. 90° Square 45° Approach | Ext. 90° Square 75° Approach | Ext. 90°Square 45°Face&Turn Ap | Int. 90° Square 75° Approach | | Tool Type | Turn Positive Inserts |
| Insert Style | SCGW | Min D.O.C. | 0.002″ |
| Corner Radius (RE) | 0.0315″ | Depth of Cut Maximum (APMX) | 0.012″ |
| Insert Size | 432 | Min. Turning Feed (ft(min)) | 0.00196 ″/rev |
| Cutting Edge Length (L) | 1/2″ | Max. Turning Feed (ft(max)) | 0.00984 ″/rev |
| Insert Thickness (S) | 0.187″ | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Cutting Edge Material | PCBN | Body Material | Carbide |
| Grade | BI15HC |
Product Features
| Family Description | Positive square inserts with a single CBN mini tip for hardened steel and cast iron | Country of Origin | Germany |
| Remarks | For dimensions and tolerances, see more info. |
