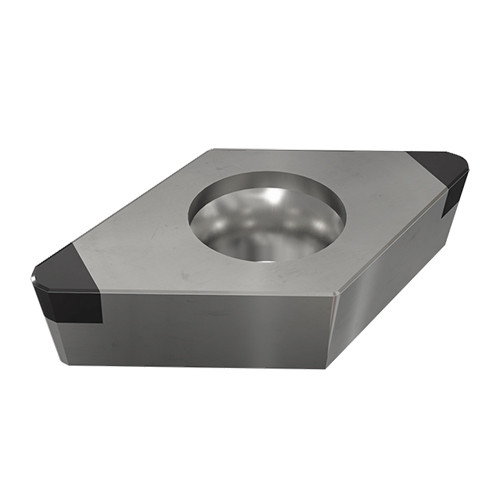

DCGW 32.52S W-2MT BI30H
| Applicable Material | | Cast Iron | Hard Materials | | Fixing Hole Diameter (D1) | 0.173″ |
| Application | | Ext. 55° Diamond 107.5° Appr. | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 91° Approach | Ext. 55° Diamond 93° Approach | Int. 55° Diamond 93 95° Approac | Y Axis for Swiss Type Machines | | Tool Type | Turn Positive Inserts |
| Insert Style | DCGW | Min D.O.C. | 0.002″ |
| Corner Radius (RE) | 0.0315″ | Depth of Cut Maximum (APMX) | 0.02″ |
| Insert Size | 32. | Min. Turning Feed (ft(min)) | 0.00196 ″/rev |
| Cutting Edge Length (L) | 0.457″ | Max. Turning Feed (ft(max)) | 0.01181 ″/rev |
| Insert Thickness (S) | 0.156″ | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Cutting Edge Material | PCBN | Body Material | Carbide |
| Grade | BI30H |
Product Features
| Family Description | Positive 55° rhombic inserts with 2 CBN mini tips and wiper for hardened steel and cast iron | Country of Origin | Germany |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.035
