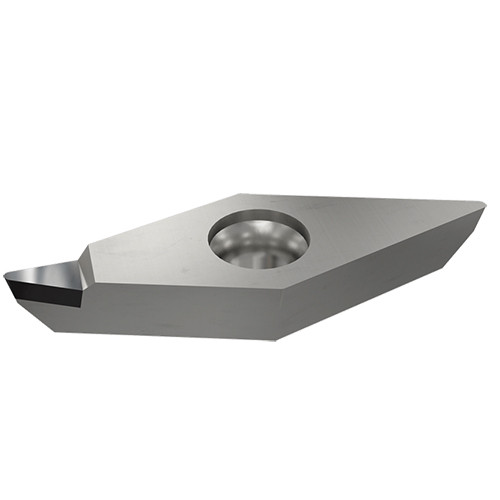

VCGT 220F ID4
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | ID4 |
| Application | | Ext. 35° Diamond 112° Approach | Ext. 35° Diamond 117° Approach | Ext. 35° Diamond 72.5° Approac | Ext. 35° Diamond 91° Approach | Ext. 35° Diamond 93° Approach | Int. 35° Diamo 95° Back Approa | Int. 35° Diamond 107.5°Approa | Int. 35° Diamond 95° Approach | Y Axis for Swiss Type Machines | | Fixing Hole Diameter (D1) | 0.11″ |
| Insert Style | VCGT | Tool Type | Turn Positive Inserts |
| Corner Radius (RE) | 0.0079″ | Min D.O.C. | 0.002″ |
| Insert Size | 220 | Depth of Cut Maximum (APMX) | 0.039″ |
| Cutting Edge Length (L) | 0.437″ | Min. Turning Feed (ft(min)) | 0.00118 ″/rev |
| Insert Thickness (S) | 1/8″ | Max. Turning Feed (ft(max)) | 0.02362 ″/rev |
| Inscribed Circle Diameter (IC) | 1/4″ | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Material | PCD | Measurement Type | Inch |
| Coating | UNCOATED | Body Material | Carbide |
Product Features
| Family Description | Positive 35° rhombic inserts with PCD top corner tip and positive rake, used for finishing aluminum and other non-ferrous materials. | Country of Origin | Germany |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.030
