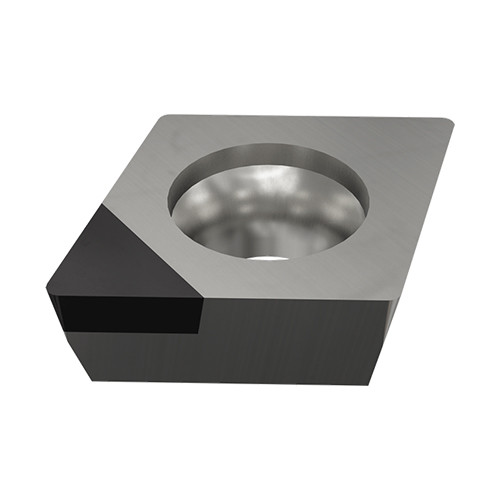

EPGW 1.51.51S BI25H
| Applicable Material | | Hard Materials | | Fixing Hole Diameter (D1) | 0.085″ |
| Application | | Int. 75° Diamond 100° Approach | | Tool Type | Turn Positive Inserts |
| Insert Style | EPGW | Min D.O.C. | 0.002″ |
| Corner Radius (RE) | 0.0157″ | Depth of Cut Maximum (APMX) | 0.02″ |
| Insert Size | 1.5 | Min. Turning Feed (ft(min)) | 0.00196 ″/rev |
| Cutting Edge Length (L) | 0.189″ | Max. Turning Feed (ft(max)) | 0.00984 ″/rev |
| Insert Thickness (S) | 0.094″ | Clearance Angle Major (AN) | 11 Degrees |
| Inscribed Circle Diameter (IC) | 0.187″ | Measurement Type | Inch |
| Cutting Edge Material | PCBN | Body Material | Carbide |
| Grade | BI25H |
Product Features
| Family Description | Positive 75° rhombic inserts with single CBN top corner tip for hardened steels and cast iron | Country of Origin | Germany |
| Remarks | For dimensions and tolerances, see more info. |
