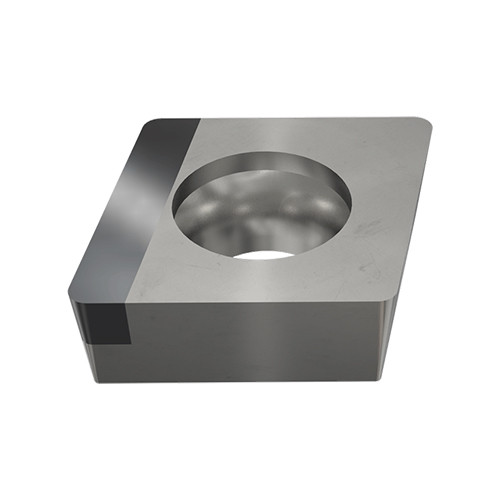

CPGW 32.51F R-L ID4
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | ID4 |
| Application | | Ext. 80° Diamond 91° Approach | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 90° Approach | Int. 80° Diamond 95° Approach | Int. Back Turning 80° Diamond | Int. Chamfering 80° Diamond | | Fixing Hole Diameter (D1) | 0.173″ |
| Insert Style | CPGW | Tool Type | Turn Positive Inserts |
| Corner Radius (RE) | 0.0157″ | Min D.O.C. | 0.002″ |
| Insert Size | 32. | Depth of Cut Maximum (APMX) | 0.374″ |
| Cutting Edge Length (L) | 0.382″ | Min. Turning Feed (ft(min)) | 0.00118 ″/rev |
| Insert Thickness (S) | 0.156″ | Max. Turning Feed (ft(max)) | 0.02362 ″/rev |
| Inscribed Circle Diameter (IC) | 3/8″ | Clearance Angle Major (AN) | 11 Degrees |
| Cutting Edge Material | PCD | Measurement Type | Inch |
| Coating | UNCOATED | Body Material | Carbide |
Product Features
| Family Description | Positive 80° rhombic inserts with full-edge PCD tip (right or left hand), used for finishing aluminum and other non-ferrous materials. | Country of Origin | Germany |
| Remarks | For dimensions and tolerances, see more info. |
