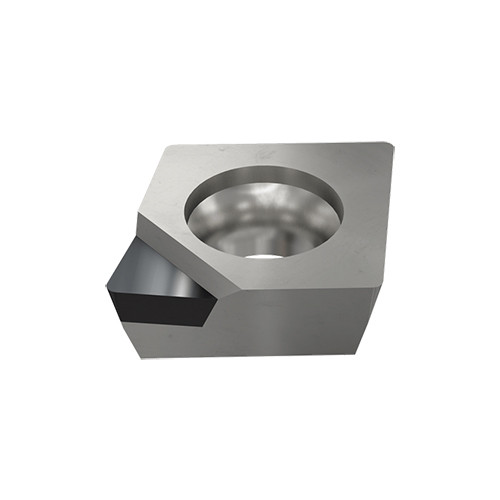

CPGT 21.50.5F ID8
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Fixing Hole Diameter (D1) | 0.11″ |
| Application | | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 90° Approach | Int. 80° Diamond 95° Approach | Int. Back Turning 80° Diamond | | Tool Type | Turn Positive Inserts |
| Insert Style | CPGT | Min D.O.C. | 0.002″ |
| Corner Radius (RE) | 0.0079″ | Depth of Cut Maximum (APMX) | 0.059″ |
| Insert Size | 21. | Min. Turning Feed (ft(min)) | 0.00118 ″/rev |
| Cutting Edge Length (L) | 0.252″ | Max. Turning Feed (ft(max)) | 0.02362 ″/rev |
| Insert Thickness (S) | 0.094″ | Clearance Angle Major (AN) | 11 Degrees |
| Inscribed Circle Diameter (IC) | 1/4″ | Measurement Type | Inch |
| Cutting Edge Material | PCD | Body Material | Carbide |
| Grade | ID8 |
Product Features
| Family Description | Positive 80° rhombic inserts with PCD top corner tip and positive rake, used for finishing aluminum and other non-ferrous materials. | Country of Origin | Germany |
| Remarks | For dimensions and tolerances, see more info. |
