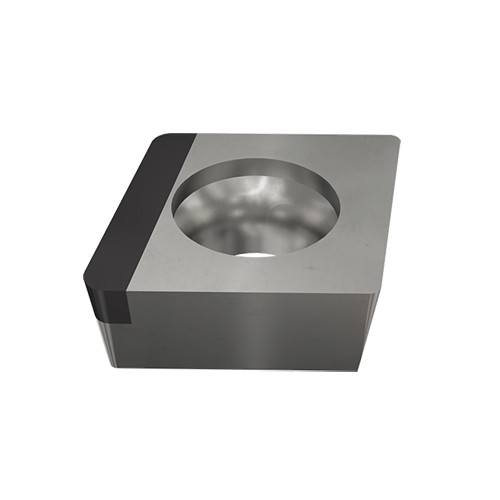

CCGW 21.50.5S R-L BI15H
| Applicable Material | | Hard Materials | | Fixing Hole Diameter (D1) | 0.11″ |
| Application | | Ext. 80° Diamond 91° Approach | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 90° Approach | Int. 80° Diamond 95° Approach | Int. Back Turning 80° Diamond | Int. Chamfering 80° Diamond | | Tool Type | Turn Positive Inserts |
| Insert Style | CCGW | Min D.O.C. | 0.002″ |
| Corner Radius (RE) | 0.0079″ | Depth of Cut Maximum (APMX) | 0.012″ |
| Insert Size | 21. | Min. Turning Feed (ft(min)) | 0.00196 ″/rev |
| Cutting Edge Length (L) | 0.252″ | Max. Turning Feed (ft(max)) | 0.00984 ″/rev |
| Insert Thickness (S) | 0.094″ | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 1/4″ | Measurement Type | Inch |
| Grade | BI15H | Body Material | Carbide |
Product Features
| Family Description | Positive 80° rhombic inserts with full-edge CBN tips (right or left hand) for hardened steels and cast iron | Country of Origin | Germany |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.026
