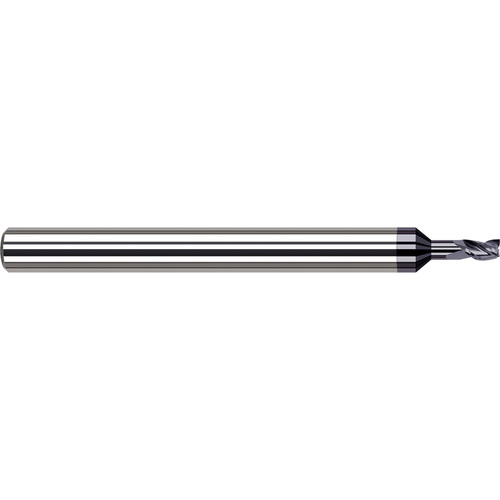

Variable Helix End Mills for Free Machining Steels - 0.0620″ (1/16″) Cutter Diameter × 0.0930″ (3/32″) Length of Cut × 0.1860″ Reach Carbide Square End Mill for Free Machining Steels, 3 Flutes, AlTiN Coated
SQ End Mill; 1/16″ Dia. × 3/32″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 3 FL ; 0.186″ LBS ; Carbide ; AlTiN
| Cutting Diameter (DC) | 1/16″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Usable Length (LU) | 0.186″ |
| Depth of Cut Maximum (APMX) | 3/32″ | Applicable Material | | Steel | |
| Overall Length (OAL) | 1-1/2″ | Length Group | 3D |
| Cutting Edge Material | Carbide | Flute Type | Stub |
| Coating | AlTiN | Decimal Equivalent | 0.0625″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.01
