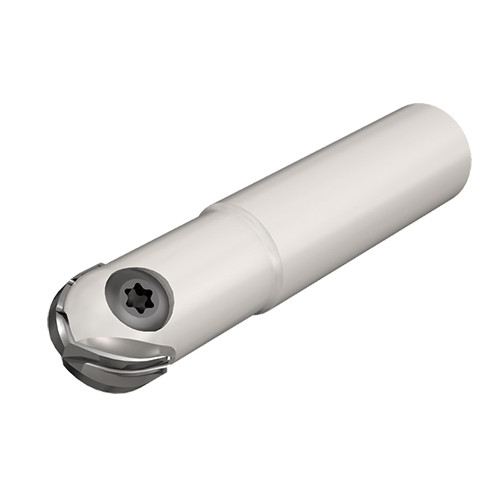

CM D18-A-W20
| Cutting Diameter (DC/DCX) | 18 mm | Head Length (LH) | 40 mm |
| Cutting Diameter (DC) | 18 mm | Tool Type | Ball nose endmills |
| Cutting Item Count (CICT) | 1 | Corner Radius (RE) | 9 mm |
| Depth of Cut Maximum (APMX) | 12.8 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 140 mm | Front Type | A |
| Shank Type | Weldon | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 90 Degrees | Measurement Type | Metric |
| Application | | Profiling | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Cutting Diameter Maximum (DCX) | 18 mm |
| Weight of Item (WT) | 0.29 Kg |
Product Features
| Family Description | Ball nose endmills D=8-20 mm (HELIBALL). | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info. |
Shipping Info
Package Weight
0.882
