APX4000R505SA32SA INDX EM

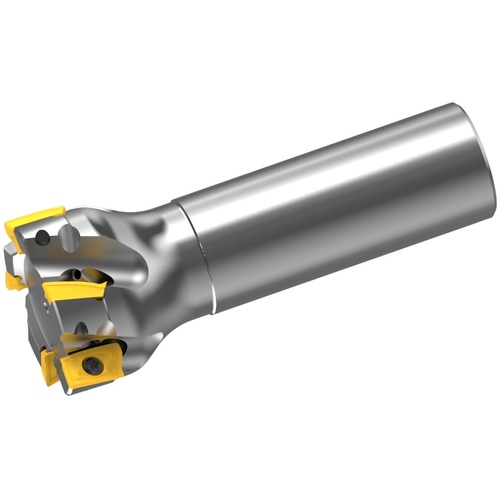

Indexable End Mill; 50 mm Dia. × 15 mm LOC × 32 mm Shank Dia. ; 5 FL ; 90 Degrees ; Series APX4000
| Cutting Diameter (DC/DCX) | 50 mm | Functional Length (LF) | 125 mm |
| Cutting Diameter (DC) | 50 mm | Flute Count (NOF) | 5 |
| Cutting Item Count (CICT) | 5 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 15 mm | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 4 Degrees | Series/List # | APX4000 |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Measurement Type | Metric |
| Head Length (LH) | 45 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.999
