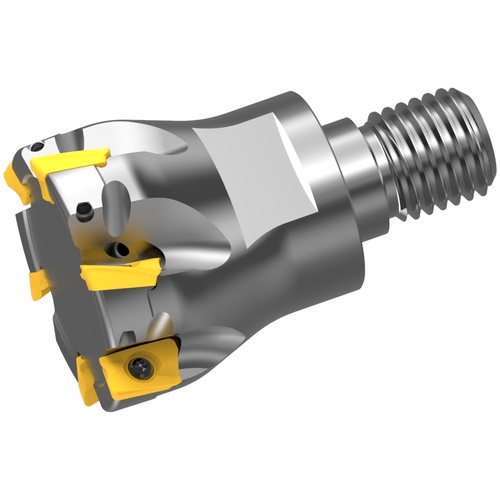

APX3000R406M16A40 INDX EM
Indexable End Mill; 40 mm Dia. × 10 mm LOC × 17 mm Shank Dia. × 63 mm OAL ; 6 FL ; 90 Degrees ; Series APX3000
| Cutting Diameter (DC/DCX) | 40 mm | Flute Count (NOF) | 6 |
| Cutting Diameter (DC) | 40 mm | Body Diameter (BD) | 29 mm |
| Cutting Item Count (CICT) | 6 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 10 mm | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 63 mm | Series/List # | APX3000 |
| Ramping Angle Maximum (RMPX) | 2.2 Degrees | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 17 mm | Connection Retention Knob Thread Size (CRKS) | M16 |
| Functional Length (LF) | 40 mm |
Product Features
| Country of Origin | Japan |
