APX3000R141SA16SA INDX EM

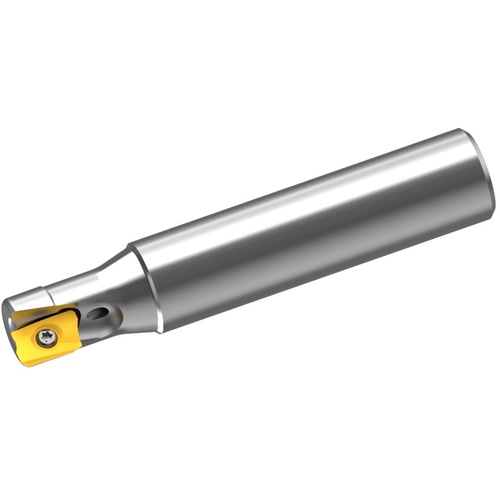

Indexable End Mill; 14 mm Dia. × 10 mm LOC × 16 mm Shank Dia. ; 1 FL ; 90 Degrees ; Series APX3000
| Cutting Diameter (DC/DCX) | 14 mm | Functional Length (LF) | 85 mm |
| Cutting Diameter (DC) | 14 mm | Flute Count (NOF) | 1 |
| Cutting Item Count (CICT) | 1 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 10 mm | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 6 Degrees | Series/List # | APX3000 |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Measurement Type | Metric |
| Head Length (LH) | 25 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.999
