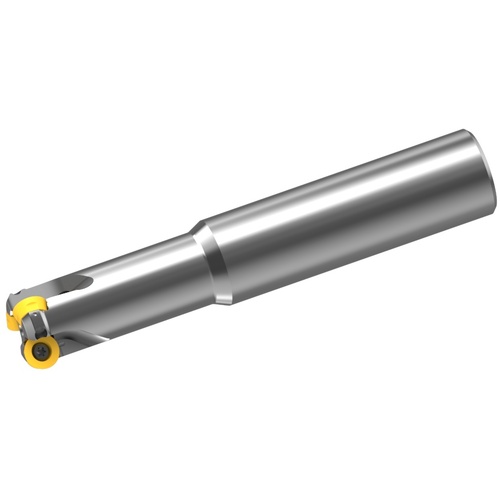

ARP5PR2503SA25M INDX EM
Indexable End Mill; 15 mm Dia. × 5 mm LOC × 25 mm Shank Dia. ; 3 FL ; Series ARP
| Cutting Diameter (DC/DCX) | 15 mm | Functional Length (LF) | 140 mm |
| Cutting Diameter (DC) | 15 mm | Flute Count (NOF) | 3 |
| Cutting Item Count (CICT) | 3 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 5 mm | Series/List # | ARP |
| Ramping Angle Maximum (RMPX) | 1.8 Degrees | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Cutting Diameter Maximum (DCX) | 25 mm |
| Head Length (LH) | 60 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.999
