ARP6PR3202AM1640 INDX EM

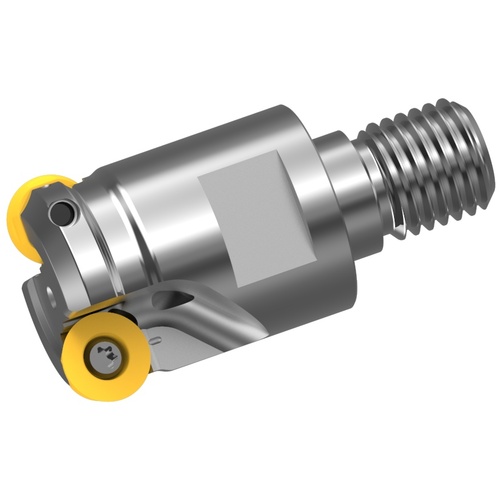

Indexable End Mill; 20.1 mm Dia. × 6 mm LOC × 17 mm Shank Dia. × 63 mm OAL ; 2 FL ; Series ARP
| Cutting Diameter (DC/DCX) | 20.1 mm | Flute Count (NOF) | 2 |
| Cutting Diameter (DC) | 20.1 mm | Body Diameter (BD) | 28.5 mm |
| Cutting Item Count (CICT) | 2 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 6 mm | Series/List # | ARP |
| Overall Length (OAL) | 63 mm | Measurement Type | Metric |
| Ramping Angle Maximum (RMPX) | 2.0 Degrees | Connection Retention Knob Thread Size (CRKS) | M16 |
| Connection Diameter Machine Side (DCONMS) | 17 mm | Cutting Diameter Maximum (DCX) | 32 mm |
| Functional Length (LF) | 40 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.999
