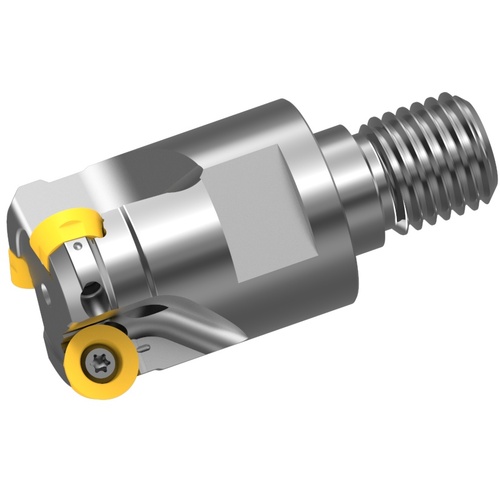

ARP5PR3203AM1640 INDX EM
Indexable End Mill; 22 mm Dia. × 5 mm LOC × 17 mm Shank Dia. × 63 mm OAL ; 3 FL ; Series ARP
| Cutting Diameter (DC/DCX) | 22 mm | Flute Count (NOF) | 3 |
| Cutting Diameter (DC) | 22 mm | Body Diameter (BD) | 28.5 mm |
| Cutting Item Count (CICT) | 3 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 5 mm | Series/List # | ARP |
| Overall Length (OAL) | 63 mm | Measurement Type | Metric |
| Ramping Angle Maximum (RMPX) | 1.9 Degrees | Connection Retention Knob Thread Size (CRKS) | M16 |
| Connection Diameter Machine Side (DCONMS) | 17 mm | Cutting Diameter Maximum (DCX) | 32 mm |
| Functional Length (LF) | 40 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.999
