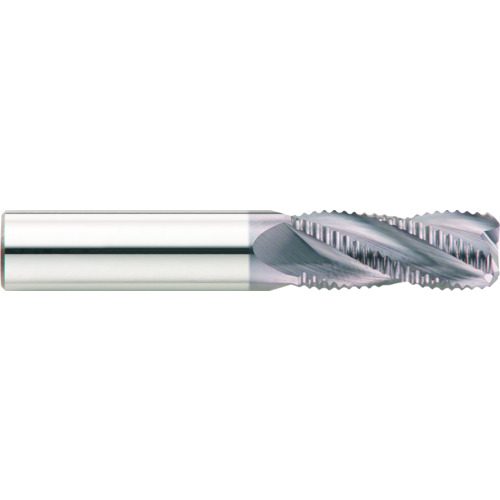

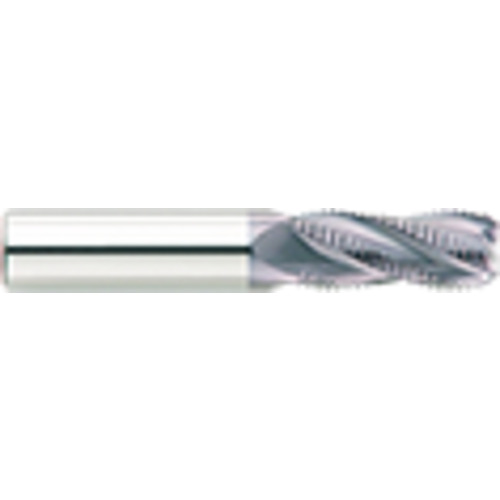

7mm × 8mm × 22mm × 65mm OAL 4 Flute VHM Hog Mill-AlTiN
Chamfer End Mill; 7 mm Dia. × 22 mm LOC × 8 mm Shank Dia. × 65 mm OAL ; 4 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 7 mm | Flute Helix Angle (FHA) | Variable|30 Degrees |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Shank Type | Round |
| Depth of Cut Maximum (APMX) | 22 mm | End Shape | Chamfer |
| Overall Length (OAL) | 65 mm | Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Cutting Edge Material | Carbide | Style | Center Cut|Single-End |
| Coating | AlTiN | Decimal Equivalent | 0.2756″ |
| Flute Count (NOF) | 4 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.09
