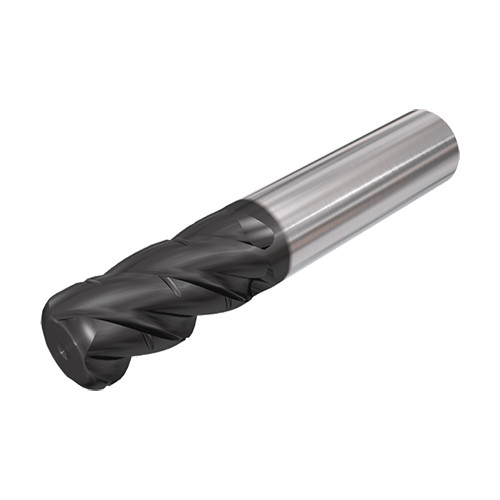

EFPI-E5CF 500-1.25C500R10 IC903
SQ End Mill; 1/2″ Dia. × 1-1/4″ LOC × 1/2″ Shank Dia. × 3″ OAL ; 0.1″ RE ; 5 FL ; 0.023″ LBS ; Carbide ; AlTiN

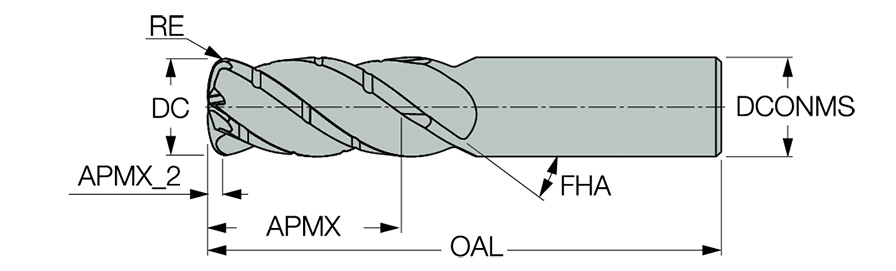

| Cutting Diameter (DC) | 1/2″ | Corner Radius (RE) | 0.1″ |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 1-1/4″ | Grade | IC903 |
| Overall Length (OAL) | 3″ | Tool Type | Solid carbide non center cutting endmills 90° |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.02 ″/tooth |
| Coating | AlTiN | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Flute Count (NOF) | 5 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 38 Degrees | Body Material | Carbide |
| Shank Type | Round | Style | Solid Carbide Non Center Cutting Endmills 90° |
| End Shape | Corner Radius | Decimal Equivalent | 0.5″ |
| Usable Length (LU) | 0.023″ | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Shouldering | Slotting | | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | 4, 5 flute 38° helix, solid carbide roughing endmills with chip splitting cutting edges, variable pitch (CHATTERFREE) and large radius front edge for high feed rates (FEEDMILL). | ItemRemark | Cannot be used for plunging application |
| Country of Origin | Israel |
Shipping Info
Package Weight
0.25
