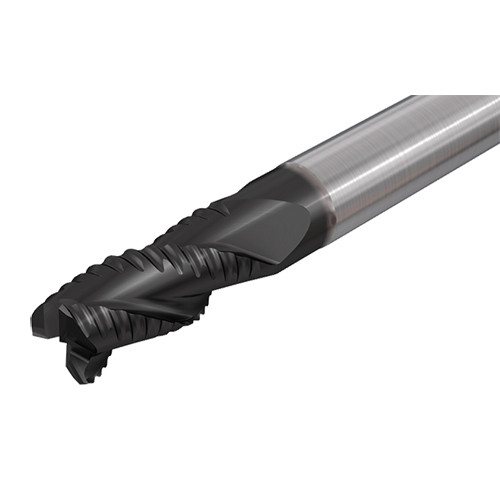

ERFI-E-3 375-750-W375 -90 IC900
SQ End Mill; 3/8″ Dia. × 3/4″ LOC × 3/8″ Shank Dia. × 3″ OAL ; 3 FL ; 1.421″ LBS ; Carbide ; AlTiN

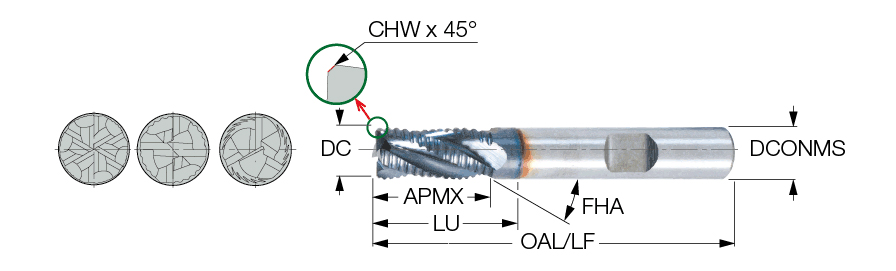

| Cutting Diameter (DC) | 3/8″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Grade | IC900 |
| Depth of Cut Maximum (APMX) | 3/4″ | Neck Diameter (DN) | 0″ |
| Overall Length (OAL) | 3″ | Body Half Taper Angle (BHTA) | 0 Degrees |
| Cutting Edge Material | Carbide | Tool Type | Solid carbide non center cutting endmills 90° |
| Coating | AlTiN | Maximum Feed per Tooth (fz(max)) | 0.004 ″/tooth |
| Flute Count (NOF) | 3 | Minimum Feed per Tooth (fz(min)) | 0.001 ″/tooth |
| Flute Helix Angle (FHA) | 38 Degrees | Coolant Supply Property (CSP) | External |
| Shank Type | Weldon | Body Material | Carbide |
| End Shape | Chamfer | Style | Solid Carbide Non Center Cutting Endmills 90° |
| Usable Length (LU) | 1.421″ | Decimal Equivalent | 0.375″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Application | | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Connection Code Machine Side (CCMS) | Weldon |
| Corner Chamfer Width (CHW) | 0.02″ | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | 3, 4, 6 flute, 30° and 38° helix, fine pitch, medium length solid carbide roughing endmills. Used for maximum stock removal of alloy and stainless steel. | Country of Origin | USA |
Shipping Info
Package Weight
0.156
