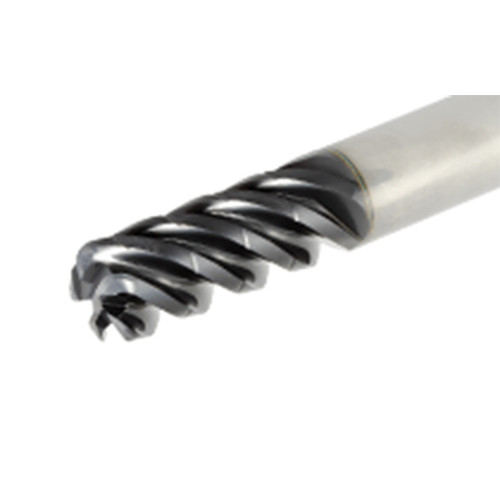

EFP-E4CF 10-20C10R1.7M72 IC903
SQ End Mill; 10 mm Dia. × 0.5 mm LOC × 10 mm Shank Dia. × 72 mm OAL ; 1.7 mm RE ; 4 FL ; 0.5 mm LBS ; Carbide ; AlTiN

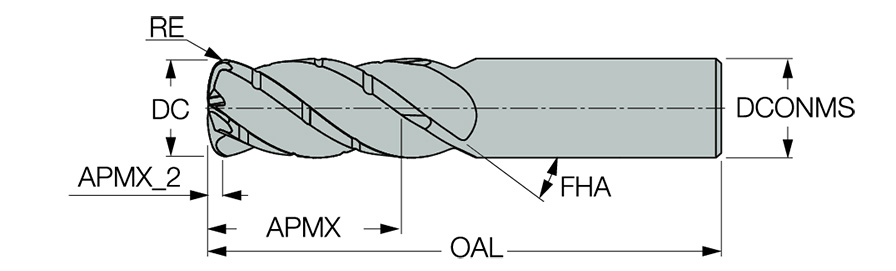

| Cutting Diameter (DC) | 10 mm | Corner Radius (RE) | 1.7 mm |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 0.5 mm | Grade | IC903 |
| Overall Length (OAL) | 72 mm | Tool Type | Solid carbide non center cutting endmills 90° |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.5 mm/tooth |
| Coating | AlTiN | Minimum Feed per Tooth (fz(min)) | 0.03 mm/tooth |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 38 Degrees | Body Material | Carbide |
| Shank Type | Round | Style | Solid Carbide Non Center Cutting Endmills 90° |
| End Shape | Corner Radius | Measurement Type | Metric |
| Usable Length (LU) | 0.5 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shank Diameter Tolerance (TCDMM) | h6 |
| Application | | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Shouldering | Slotting | |
Product Features
| Family Description | 4, 5 flute 38° helix, solid carbide roughing endmills with chip splitting cutting edges, variable pitch (CHATTERFREE) and large radius front edge for high feed rates (FEEDMILL). | Country of Origin | Israel |
Shipping Info
Package Weight
0.169
