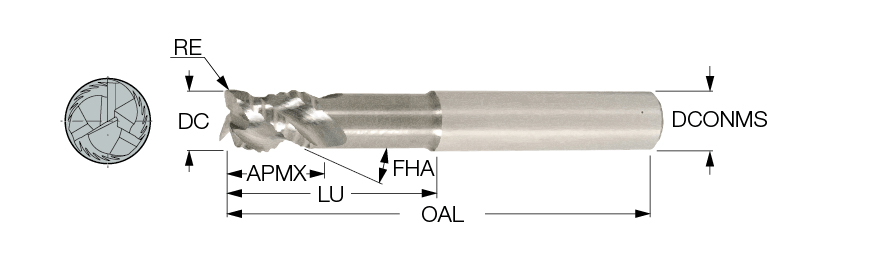

ECR-B3 10-12/31W10R02A72 IC08
SQ End Mill; 10 mm Dia. × 12 mm LOC × 10 mm Shank Dia. × 72 mm OAL ; 0.2 mm RE ; 3 FL ; 31 mm LBS ; Carbide ; Uncoated
| Cutting Diameter (DC) | 10 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Grade | IC08 |
| Depth of Cut Maximum (APMX) | 12 mm | Neck Diameter (DN) | 9 mm |
| Overall Length (OAL) | 72 mm | Body Half Taper Angle (BHTA) | 15 Degrees |
| Cutting Edge Material | Carbide | Tool Type | Solid carbide center cutting endmills 90° |
| Coating | Uncoated | Maximum Feed per Tooth (fz(max)) | 0.2 mm/tooth |
| Flute Count (NOF) | 3 | Minimum Feed per Tooth (fz(min)) | 0.05 mm/tooth |
| Flute Helix Angle (FHA) | 45 Degrees | Coolant Supply Property (CSP) | External |
| Shank Type | Weldon | Body Material | Carbide |
| End Shape | Corner Radius | Style | Solid Carbide Center Cutting Endmills 90° |
| Usable Length (LU) | 31 mm | Measurement Type | Metric |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Connection Code Machine Side (CCMS) | Weldon |
| Application | | Counter Boring | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Cutting Diameter Tolerance | h6 |
| Corner Radius (RE) | 0.2 mm | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features

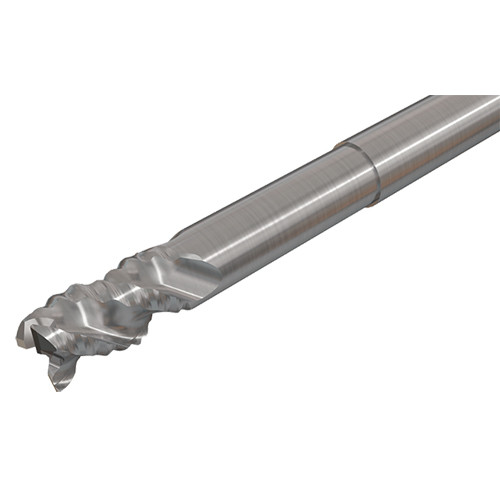

| Family Description | 3 flute, 45° helix solid carbide roughing endmills with 3xd relieved necks for high stock removal rates of aluminum. | Country of Origin | Israel |
Shipping Info
Package Weight
0.169
