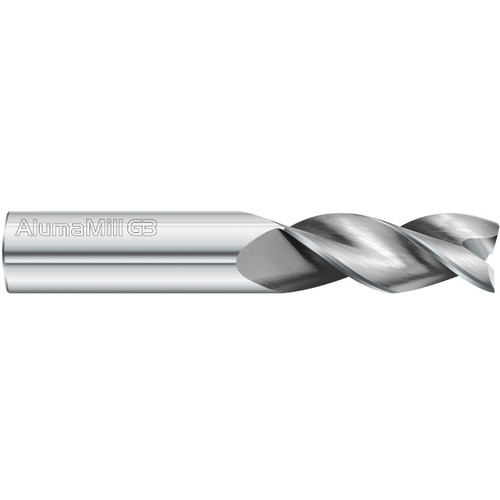

Square End Mill; 8 mm Dia. × 25 mm LOC × 8 mm Shank Dia. × 64 mm OAL ; 3 FL ; Carbide ; Uncoated ; Series 3833

‹ ›

Square End Mill; 8 mm Dia. × 25 mm LOC × 8 mm Shank Dia. × 64 mm OAL ; 3 FL ; Carbide ; Uncoated ; Series 3833

Item # FT8593005

Brand: Fullerton Tool

MFG #: 93005

Legacy Part #: FT8593005

TradeName: 3833 AlumaMill G3 End Mill

Quantity Available

Cutting Diameter (DC)

8 mm

Shank Type

Round

Connection Diameter Machine Side (DCONMS)

8 mm

End Shape

Square

Depth of Cut Maximum (APMX)

25 mm

Tool Type

Center Cut|Single-End

Overall Length (OAL)

64 mm

Length Group

Regular

Cutting Edge Material

Carbide

Coolant Supply Property (CSP)

External

Coating

Uncoated

Decimal Equivalent

0.315″

Flute Count (NOF)

Series/List #

3833

Flute Helix Angle (FHA)

37.5 Degrees

Product Features

Remarks

‎

Square, Ball and Radius End

3 Flutes

37.5° High Helix

Single End

Right Hand Spiral

Right Hand Cut

Available in Various Flute and Overall Lengths

Standard Uncoated and FC-19 Coating

Inch Based Tools

Dura Carb (Micrograin)

Shank Diameter Tolerance: h6

Cutter Diameter Tolerance: +.0000″ -. 0005″ / +0.000–0.013mm

Some Items are made to order and not planned as a normal stocked item, when checking stock this will be indicated

Country of Origin

USA

Shipping Info

Package Weight

.085
