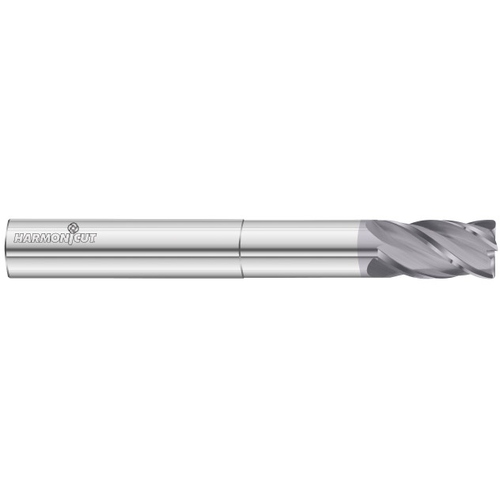

Corner Radius End Mill; 3/8″ Dia. × 3/4″ LOC × 3/8″ Shank Dia. × 4″ OAL ; 4 FL ; Carbide ; FC18 ; Series 3400

‹ ›

Corner Radius End Mill; 3/8″ Dia. × 3/4″ LOC × 3/8″ Shank Dia. × 4″ OAL ; 4 FL ; Carbide ; FC18 ; Series 3400

Corner Radius End Mill; 3/8″ Dia. × 3/4″ LOC × 3/8″ Shank Dia. × 4″ OAL ; 4 FL ; Carbide ; Series 3400

Item # FT8534200

Brand: Fullerton Tool

MFG #: 34200

Legacy Part #: FT8534200

TradeName: 3400 Harmon-i-Cut End Mill

Quantity Available

Cutting Diameter (DC)

3/8″

End Shape

Corner Radius

Connection Diameter Machine Side (DCONMS)

3/8″

Usable Length (LU)

‎2-1/4″

Depth of Cut Maximum (APMX)

3/4″

Corner Radius (RE)

0.02″

Overall Length (OAL)

4″

Tool Type

Center Cut|Single-End

Cutting Edge Material

Carbide

Length Group

Long Reach

Coating

FC18

Coolant Supply Property (CSP)

External

Flute Count (NOF)

Decimal Equivalent

0.375″

Flute Helix Angle (FHA)

Variable

Series/List #

3400

Shank Type

Round

Product Features

Remarks

‎

Square, Ball and Corner Radius End

4 Flutes

Variable Helix

Variable Index

Variable Rake

Superior Core Strength

Single End

Right Hand Spiral

Right Hand Cut

Available in Various Flute and Overall Lengths

Standard FC-18 Coating

Metric and Inch Based Tools

Center Cutting

Dura Carb (Micrograin)

Shank Diameter Tolerance: h6

Cutter Diameter Tolerance: +.000″ -.002″ / +0.000–0.05mm

Some Items are made to order and not planned as a normal stocked item, when checking stock this will be indicated

Country of Origin

USA

Shipping Info

Package Weight

.340
