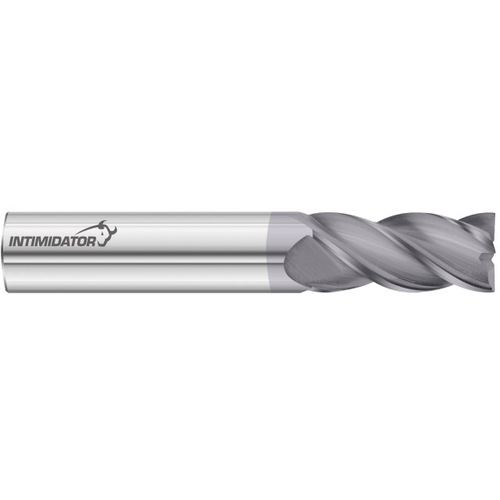

Square End Mill; 10 mm Dia. × 25 mm LOC × 10 mm Shank Dia. × 64 mm OAL ; 4 FL ; Carbide ; FC18 ; Series 3000

‹ ›

Square End Mill; 10 mm Dia. × 25 mm LOC × 10 mm Shank Dia. × 64 mm OAL ; 4 FL ; Carbide ; FC18 ; Series 3000

Square End Mill; 10 mm Dia. × 25 mm LOC × 10 mm Shank Dia. × 64 mm OAL ; 4 FL ; Carbide ; Series 3000

Item # FT8593805

Brand: Fullerton Tool

MFG #: 93805

Legacy Part #: FT8593805

TradeName: 3000 Intimidator End Mill

Quantity Available

Cutting Diameter (DC)

10 mm

Shank Type

Round

Connection Diameter Machine Side (DCONMS)

10 mm

End Shape

Square

Depth of Cut Maximum (APMX)

25 mm

Tool Type

Center Cut|Single-End

Overall Length (OAL)

64 mm

Length Group

Regular

Cutting Edge Material

Carbide

Coolant Supply Property (CSP)

External

Coating

FC18

Decimal Equivalent

0.3937″

Flute Count (NOF)

Series/List #

3000

Flute Helix Angle (FHA)

38 Degrees

Product Features

Remarks

‎

Square, Chamfer and Radius End Options

Chatter-Free Machining

4 Flutes

Unequally Spaced Index

Specially Designed Relief

Right Hand Spiral

Right Hand Cut

Available in Various Flute and Overall Lengths

Standard FC-18 Coating

Metric and Inch Based Tools

Center Cutting

Dura Carb (Micrograin)

Shank Diameter Tolerance: h6

Cutter Diameter Tolerance: +.000″ -.002″ / +0.000–0.05mm

Some Items furnished with Weldon Flats

Some Items are made to order and not planned as a normal stocked item, when checking stock this will be indicated

Country of Origin

USA

Shipping Info

Package Weight

.245
