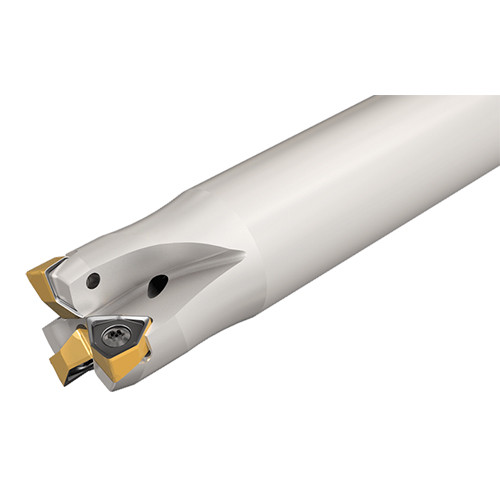

H690 EWN D0.75-3-W0.75R04
Indexable End Mill; 3/4″ Dia. × 0.157″ LOC × 3/4″ Shank Dia. × 3-1/8″ OAL ; 3 FL ; Weldon Shank ; 90 Degrees

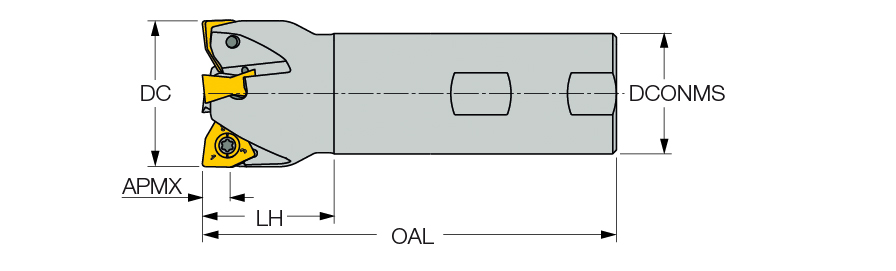

| Cutting Diameter (DC/DCX) | 3/4″ | Weight of Item (WT) | 0.31 Lbs |
| Cutting Diameter (DC) | 3/4″ | Head Length (LH) | 1″ |
| Cutting Item Count (CICT) | 3 | Functional Length (LF) | 2.109″ |
| Depth of Cut Maximum (APMX) | 0.157″ | Flute Count (NOF) | 3 |
| Overall Length (OAL) | 3-1/8″ | Coolant Supply Property (CSP) | Coolant Thru |

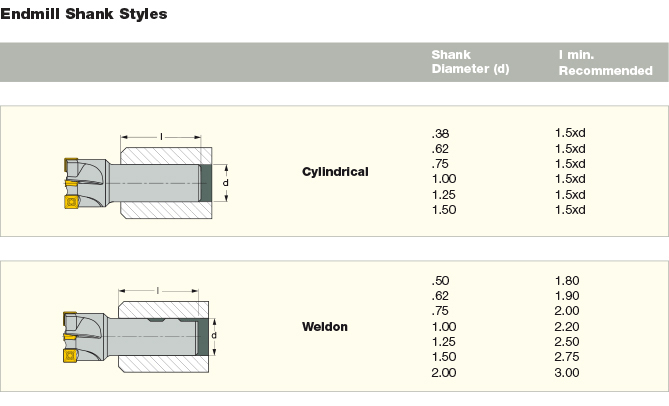

| Shank Type | Weldon | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 1.6 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Rampdown | Shouldering | Slotting | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Body Material | Steel |
| Master Insert Identification (MIID) | H690 WNMU 0403-PNTR | Connection Code Machine Side (CCMS) | Weldon |
Product Features
| Family Description | 90° endmills carrying H690 WNMU 0403 double-sided trigonal inserts with 6 helical cutting edges. | Country of Origin | Israel |
| Remarks | Insert clamping screw must be lubricated every indexing. Tightening torque 8 lbfxin |
Shipping Info
Package Weight
0.423
