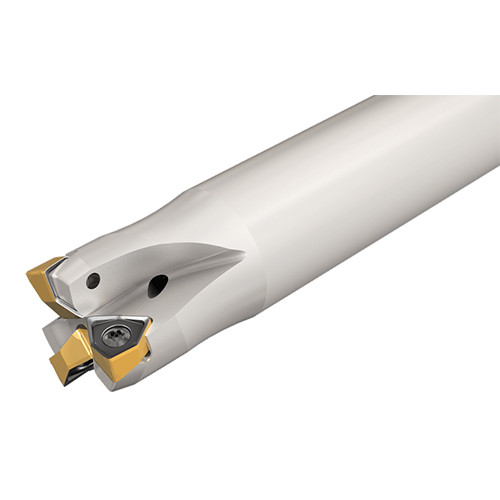

H690 EWN D32-5-C32-R04
Indexable End Mill; 32 mm Dia. × 4 mm LOC × 32 mm Shank Dia. × 130 mm OAL ; 5 FL ; Round Shank ; 90 Degrees

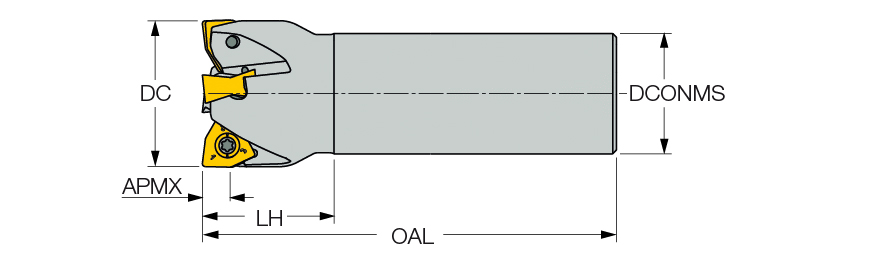

| Cutting Diameter (DC/DCX) | 32 mm | Weight of Item (WT) | 0.68 Kg |
| Cutting Diameter (DC) | 32 mm | Head Length (LH) | 35 mm |
| Cutting Item Count (CICT) | 5 | Functional Length (LF) | 130 mm |
| Depth of Cut Maximum (APMX) | 4 mm | Flute Count (NOF) | 5 |
| Overall Length (OAL) | 130 mm | Coolant Supply Property (CSP) | Coolant Thru |

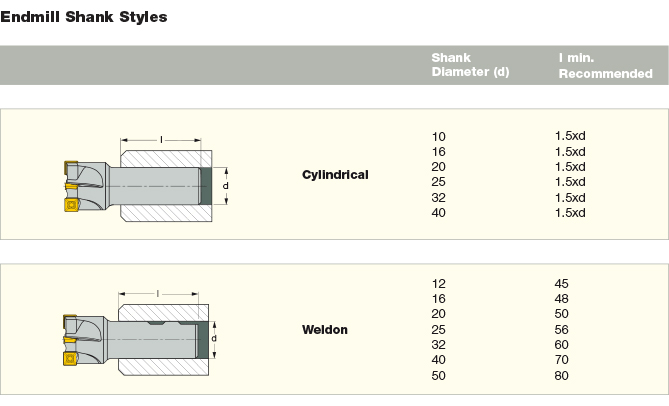

| Shank Type | Round | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 0.8 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Body Material | Steel |
| Master Insert Identification (MIID) | H690 WNMU 0404-PNTR | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | 90° endmills carrying H690 WNMU 0403 double-sided trigonal inserts with 6 helical cutting edges. | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info. Insert clamping screw must be lubricated every indexing |
Shipping Info
Package Weight
1.645
