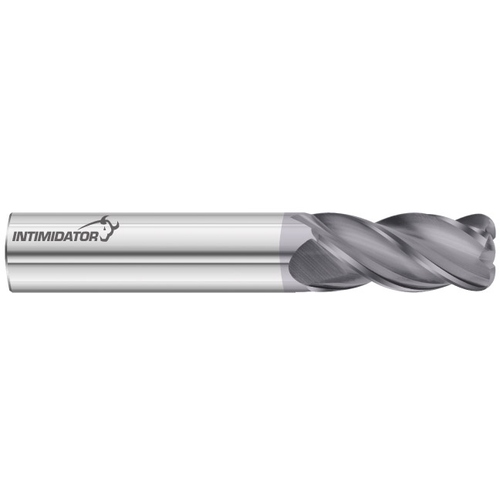

Corner Radius End Mill; 5/8″ Dia. × 1-1/4″ LOC × 5/8″ Shank Dia. × 3-1/2″ OAL ; 4 FL ; Carbide ; FC18 ; Series 3000
Corner Radius End Mill; 5/8″ Dia. × 1-1/4″ LOC × 5/8″ Shank Dia. × 3-1/2″ OAL ; 4 FL ; Carbide ; Series 3000
| Cutting Diameter (DC) | 5/8″ | Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 1-1/4″ | Corner Radius (RE) | 0.09″ |
| Overall Length (OAL) | 3-1/2″ | Tool Type | Center Cut|Single-End |
| Cutting Edge Material | Carbide | Length Group | Regular |
| Coating | FC18 | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.625″ |
| Flute Helix Angle (FHA) | 38 Degrees | Series/List # | 3000 |
Product Features
| Remarks | |
Country of Origin | USA |
Shipping Info
Package Weight
.460
