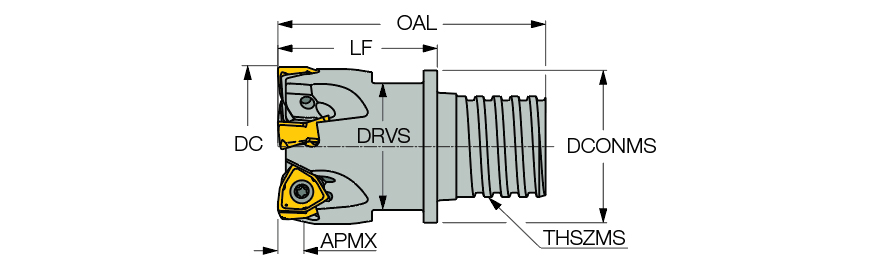

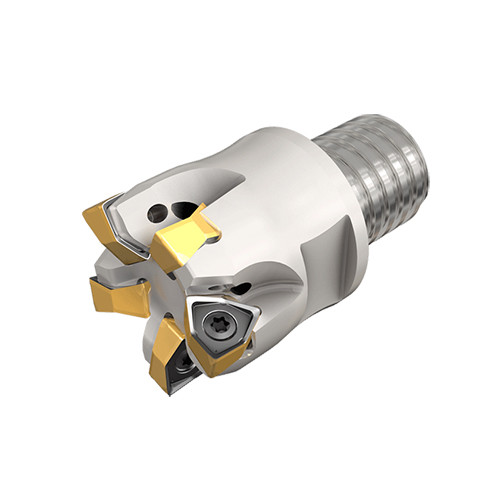

H690 EWN D25-5-MMT15-R04
Indexable End Mill; 0.984″ Dia. × 0.157″ LOC × 0.941″ Shank Dia. × 1.654″ OAL ; 5 FL ; 90 Degrees
| Cutting Diameter (DC/DCX) | 0.984″ | Functional Length (LF) | 0.984″ |
| Cutting Diameter (DC) | 0.984″ | Connection Thread Nominal Size Machine Side (THSZMS) | T15 |
| Cutting Item Count (CICT) | 5 | Drive Size (DRVS) | 0.787″ |
| Depth of Cut Maximum (APMX) | 0.157″ | Flute Count (NOF) | 5 |
| Overall Length (OAL) | 1.654″ | Coolant Supply Property (CSP) | Coolant Thru |
| Ramping Angle Maximum (RMPX) | 1.1 Degrees | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0.941″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | H690 WNMU 0403 | Body Material | Steel |
| Weight of Item (WT) | 0.26 Lbs | Connection Code Machine Side (CCMS) | MultiMaster |
Product Features
| Family Description | 90° endmills with a MULTI-MASTER threaded connection carrying H690 WNMU 0403 double-sided trigonal inserts with 6 helical cutting edges. | Country of Origin | Israel |
| Remarks | Insert clamping screw must be lubricated every indexing. For adaptation click on More Info |
