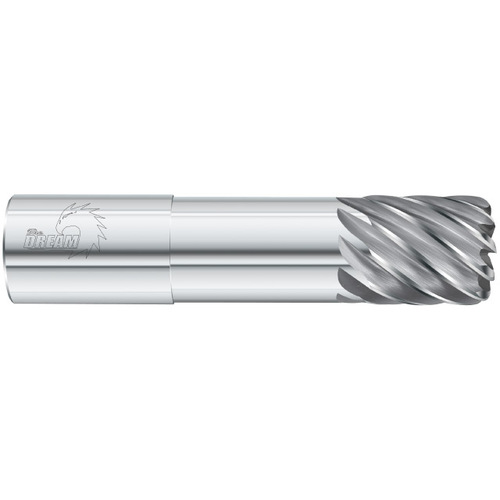

Corner Radius End Mill; 3/4″ Dia. × 1-1/8″ LOC × 3/4″ Shank Dia. × 4″ OAL ; 8 FL ; Carbide ; Uncoated ; Series 3810
SQ End Mill; 3/4″ Dia. × 1-1/8″ LOC × 3/4″ Shank Dia. × 4″ OAL ; 0.12″ RE ; 8 FL ; 2-1/2″ LBS ; Carbide ; Uncoated ; Series 3810
| Cutting Diameter (DC) | 3/4″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Usable Length (LU) | 2-1/2″ |
| Depth of Cut Maximum (APMX) | 1-1/8″ | Corner Radius (RE) | 0.12″ |
| Overall Length (OAL) | 4″ | Tool Type | Center Cut|Single-End |
| Cutting Edge Material | Carbide | Length Group | Long Reach |
| Coating | Uncoated | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 8 | Decimal Equivalent | 0.75″ |
| Flute Helix Angle (FHA) | 38 Degrees | Series/List # | 3810 |
| Shank Type | Round |
Product Features
| Remarks | |
Country of Origin | USA |
Shipping Info
Package Weight
0.74
