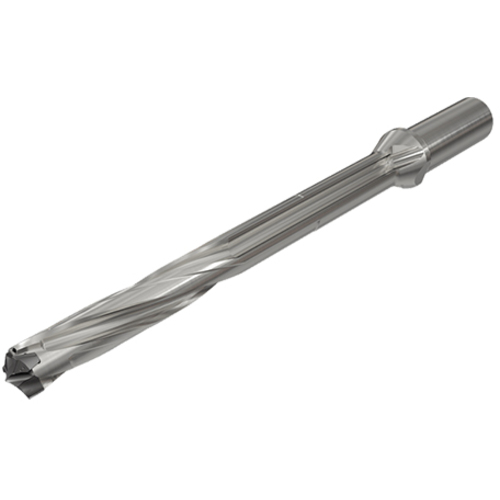

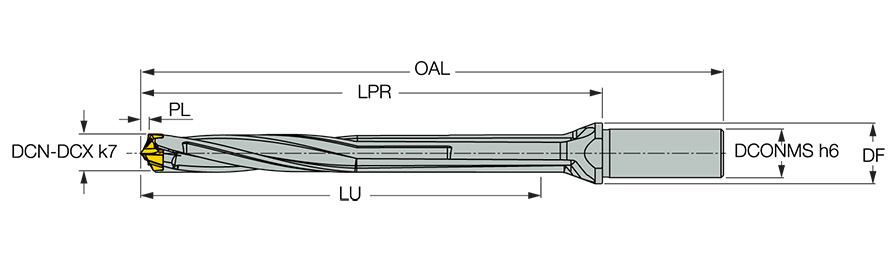

D3N 130-130-16R-10D
Drill; 13 mm Dia. × 13 mm Min. Dia. × 13.49 mm Max. Dia. × 16 mm Shank Dia. × 203 mm OAL × 132.91 mm LU
| Cutting Diameter (DC) | 13 mm | Overall Length (OAL) | 203 mm |
| Usable Length (LU) | 132.91 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drilling | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Master Insert Identification (MIID) | H3P 130-IQ |
| Insert Seat Size Code (SSC) | 13 | Point Length (PL) | 2.91 mm |
| Cutting Diameter Minimum (DCN) | 13 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 13.49 mm | Flange Diameter (DF) | 20 mm |
| Protruding Length (LPR) | 155 mm |
Product Features
| Family Description | Exchangeable head 3 flute drills with internal coolant holes and a round shank, drilling depth 10xD | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Package Weight
0.441
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
