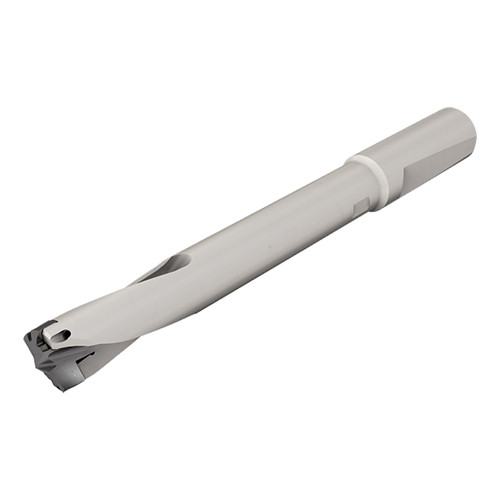

DCN 270-050-32N-5D-BD

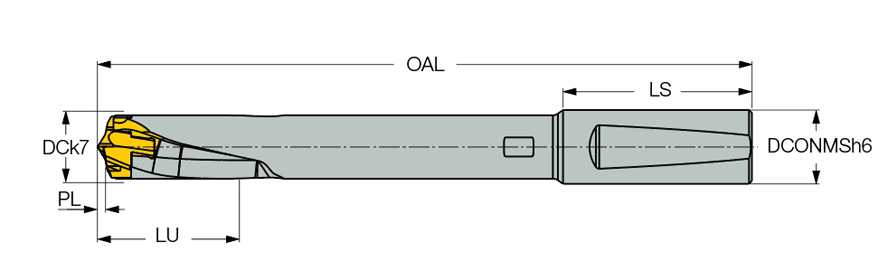

Drill; 27 mm Dia. × 27 mm Min. Dia. × 27.99 mm Max. Dia. × 32 mm Shank Dia. × 260.4 mm OAL × 40 mm LU × 68 mm Shank Length ; Whistle notch Shank
| Cutting Diameter (DC) | 27 mm | Functional Length (LF) | 189 mm |
| Usable Length (LU) | 40 mm | Overall Length (OAL) | 260.4 mm |
| Shank Type | Whistle notch | Shank Length (LS) | 68 mm |
| Application | | Drilling | | Coolant Supply Property (CSP) | Coolant Thru |
| Tool Type | Indexable Insert Drills | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Master Insert Identification (MIID) | IHP 270-BD |
| Insert Seat Size Code (SSC) | 27.0 | Point Length (PL) | 3.4 mm |
| Cutting Diameter Minimum (DCN) | 27 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 27.99 mm | Flange Diameter (DF) | 0 mm |
Product Features
| Family Description | Exchangeable head drills with a reinforced body and a Whistle Notch shank,diameter ratio 5xD, for construction beam Industry | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Package Weight
1252
