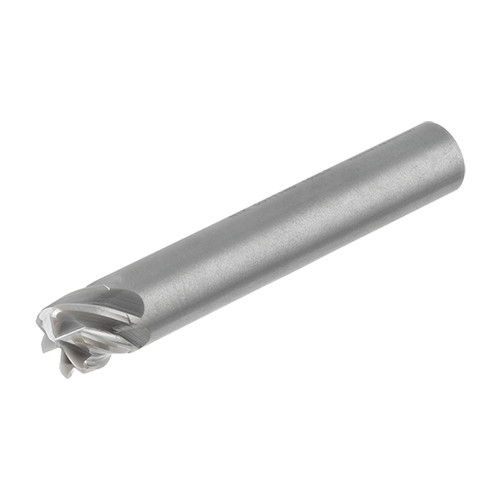

EC-E6 12-09-R1.5N70CE IS45
SQ End Mill; 12 mm Dia. × 9 mm LOC × 12 mm Shank Dia. × 70 mm OAL ; 1.5 mm RE ; 6 FL ; 9 mm LBS ; Ceramic
| Cutting Diameter (DC) | 12 mm | Application | | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Corner Radius (RE) | 1.5 mm |
| Depth of Cut Maximum (APMX) | 9 mm | Ramping Angle Maximum (RMPX) | 1.5 Degrees |
| Overall Length (OAL) | 70 mm | Grade | IS45 |
| Cutting Edge Material | Ceramic | Tool Type | Solid carbide non center cutting endmills 90° |
| Flute Count (NOF) | 6 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 40 Degrees | Body Material | Ceramic |
| Shank Type | Round | Measurement Type | Metric |
| End Shape | Corner Radius | Connection Code Machine Side (CCMS) | Cylindrical |
| Usable Length (LU) | 9 mm | Cutting Diameter Tolerance | h6 |
| Applicable Material | | Cast Iron | Super-Alloys / Titanium | | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | Solid ceramic endmills with 6 flutes for machining nickel-based alloy materials | Country of Origin | Japan |
Shipping Info
Package Weight
33
