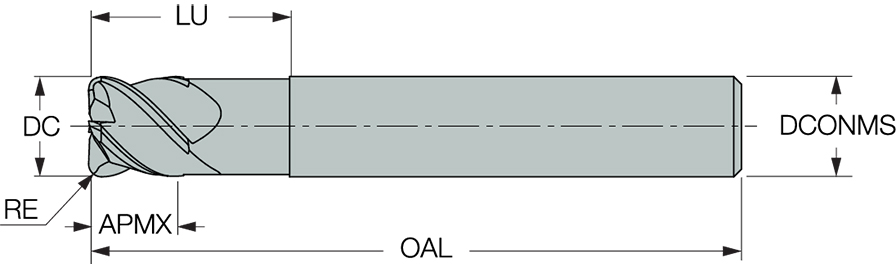

EC-E4 12-09/2024R1.5N70CE IS45

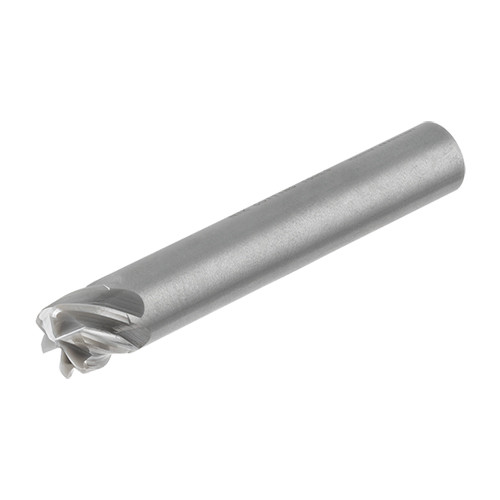

SQ End Mill; 12 mm Dia. × 9 mm LOC × 12 mm Shank Dia. × 70 mm OAL ; 1.5 mm RE ; 4 FL ; 24 mm LBS ; Ceramic
| Cutting Diameter (DC) | 12 mm | Corner Radius (RE) | 1.5 mm |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Ramping Angle Maximum (RMPX) | 1.5 Degrees |
| Depth of Cut Maximum (APMX) | 9 mm | Grade | IS45 |
| Overall Length (OAL) | 70 mm | Neck Diameter (DN) | 11.6 mm |
| Cutting Edge Material | Ceramic | Body Half Taper Angle (BHTA) | 15 Degrees |
| Flute Count (NOF) | 4 | Tool Type | Solid carbide center cutting endmills 90° |
| Flute Helix Angle (FHA) | 35 Degrees | Coolant Supply Property (CSP) | External |
| Shank Type | Round | Body Material | Ceramic |
| End Shape | Corner Radius | Measurement Type | Metric |
| Usable Length (LU) | 24 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Cast Iron | Super-Alloys / Titanium | | Cutting Diameter Tolerance | e8 |
| Application | | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | Solid ceramic endmills with 4 flutes for machining nickel-based alloy materials | Country of Origin | Japan |
Shipping Info
Package Weight
33
