ECI-E6 500-375-R.068CE IS45

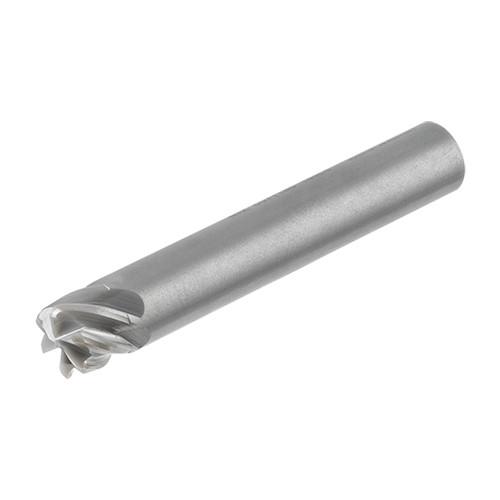

SQ End Mill; 1/2″ Dia. × 3/8″ LOC × 1/2″ Shank Dia. × 2-3/4″ OAL ; 0.068″ RE ; 6 FL ; 3/8″ LBS ; Ceramic
| Cutting Diameter (DC) | 1/2″ | Corner Radius (RE) | 0.068″ |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Ramping Angle Maximum (RMPX) | 1.5 Degrees |
| Depth of Cut Maximum (APMX) | 3/8″ | Grade | IS45 |
| Overall Length (OAL) | 2-3/4″ | Tool Type | Solid carbide non center cutting endmills 90° |
| Cutting Edge Material | Ceramic | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 6 | Body Material | Ceramic |
| Shank Type | Round | Decimal Equivalent | 0.5″ |
| End Shape | Corner Radius | Measurement Type | Inch |
| Usable Length (LU) | 3/8″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Cast Iron | Super-Alloys / Titanium | | Shank Diameter Tolerance (TCDMM) | h6 |
| Application | | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
Product Features
| Family Description | Solid ceramic endmills with 6 flutes for machining nickel-based alloy materials | Country of Origin | Japan |
Shipping Info
Package Weight
0.077
