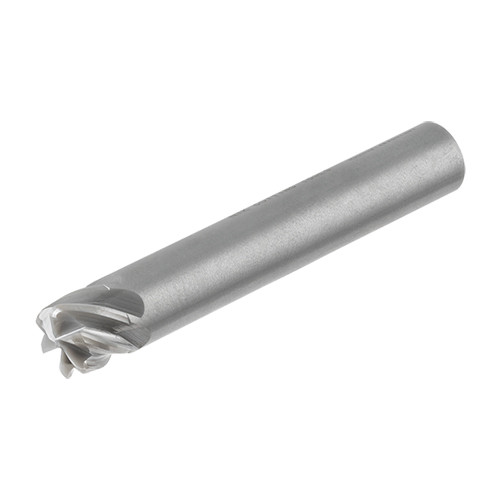

ECI-E4 375-281/075R.047CE IS45
SQ End Mill; 3/8″ Dia. × 0.281″ LOC × 3/8″ Shank Dia. × 2-1/2″ OAL ; 0.047″ RE ; 4 FL ; 3/4″ LBS ; Ceramic
| Cutting Diameter (DC) | 3/8″ | Ramping Angle Maximum (RMPX) | 1.5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Grade | IS45 |
| Depth of Cut Maximum (APMX) | 0.281″ | Neck Diameter (DN) | 0.359″ |
| Overall Length (OAL) | 2-1/2″ | Body Half Taper Angle (BHTA) | 15 Degrees |
| Cutting Edge Material | Ceramic | Tool Type | Solid carbide center cutting endmills 90° |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Shank Type | Round | Body Material | Ceramic |
| End Shape | Corner Radius | Decimal Equivalent | 0.375″ |
| Usable Length (LU) | 3/4″ | Measurement Type | Inch |
| Applicable Material | | Cast Iron | Super-Alloys / Titanium | | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Shank Diameter Tolerance (TCDMM) | h6 |
| Corner Radius (RE) | 0.047″ |
Product Features
| Family Description | Solid ceramic endmills with 4 flutes for machining nickel-based alloy materials | Country of Origin | Japan |
Shipping Info
Package Weight
22
