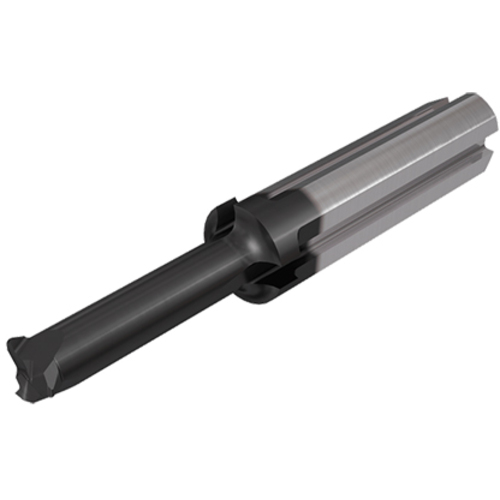

PMC LT20D50R15-25 IC908

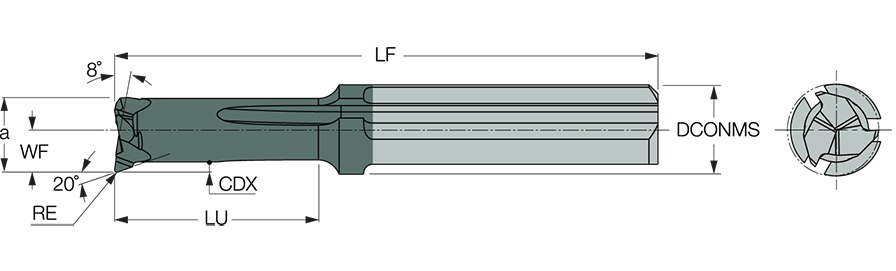

Boring Bar; 0.197″ Shank Dia. × 0.197″ Min Bore Dia. × 0.02″ Max Bore Depth × 0.9567″ LU × 1.575″ LF ; 0.0059″ Corner Radius ; Carbide ; TiAlN
| Connection Diameter Machine Side (DCONMS) | 0.197″ | Corner Radius (RE) | 0.0059″ |
| Minimum Bore Diameter (DMIN) | 0.197″ | Cutting Depth Maximum (CDX) | 0.02″ |
| Functional Length (LF) | 1.575″ | Functional Width (WF) | 0.091″ |
| Cutting Direction (HAND) | Left Hand | Usable Length (LU) | 0.9567″ |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 | Cutting Edge Material | Carbide |
| Application | | Int. Boring and Profiling | | Tool Type | Solid, Turning & Grooving |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Front End Width (a) | 0.157″ |
Product Features
| Family Description | Inserts with three cutting edges for internal turning and chamfering | Country of Origin | Israel |
Shipping Info
Package Weight
9
