| Applicable Material | | Hard Materials | Super-Alloys / Titanium | | Tool Type | Turn Ultra hard Inserts |
| Application | | Ext. Round Face & Turn | Facing | Helical Interpolation | Profiling | Rampdown | Shouldering | | Min D.O.C. | 0.02″ |

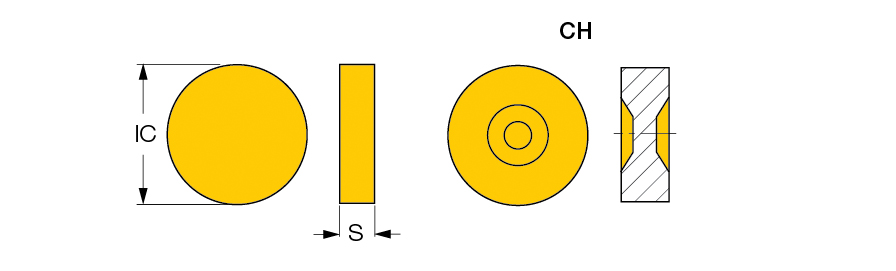

| Insert Style | RNG | Depth of Cut Maximum (APMX) | 0.118″ |
| Insert Size | 43 T | Min. Turning Feed (ft(min)) | 0.00708 ″/rev |
| Insert Thickness (S) | 0.187″ | Max. Turning Feed (ft(max)) | 0.01771 ″/rev |
| Inscribed Circle Diameter (IC) | 1/2″ | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Material | Whiskers | Measurement Type | Inch |
| Grade | IW10 | Body Material | Carbide |
Product Features

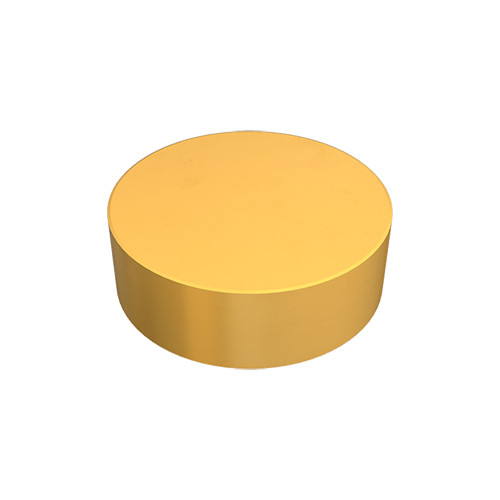

| Family Description | Negative round double-sided ceramic inserts for machining cast iron, hardened steel, and heat-resistant alloys | Country of Origin | Japan |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
4.4
Related Documentation
