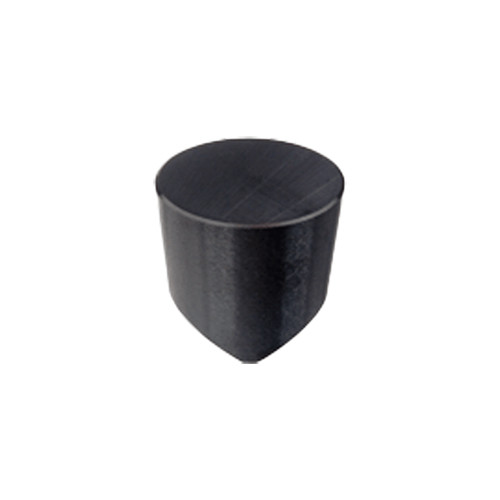

RCGX 45 T0420 IW10
| Applicable Material | | Hard Materials | Super-Alloys / Titanium | | Min D.O.C. | 0.008″ |
| Application | | Ext. Round Face & Turn | | Depth of Cut Maximum (APMX) | 0.157″ |
| Insert Style | RCGX | Min. Turning Feed (ft(min)) | 0.00236 ″/rev |
| Insert Size | 45 | Max. Turning Feed (ft(max)) | 0.01732 ″/rev |

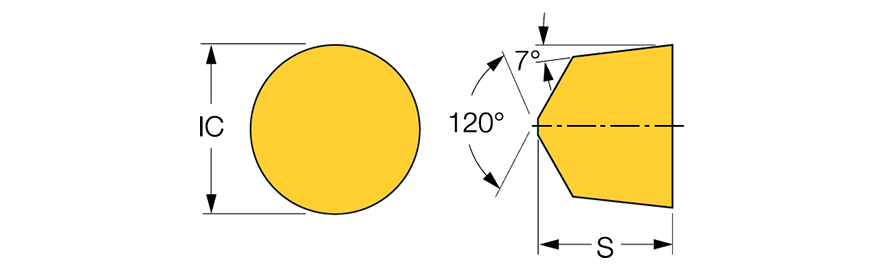

| Insert Thickness (S) | 0.313″ | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 1/2″ | Chip Breaker Type | W |
| Cutting Edge Material | Whiskers | Measurement Type | Inch |
| Grade | IW10 | Body Material | Carbide |
| Tool Type | Turn Positive Inserts |
Product Features
| Family Description | Positive round ceramic inserts for machining cast iron, hardened steel, and heat-resistant alloys | Country of Origin | Japan |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
5.2
