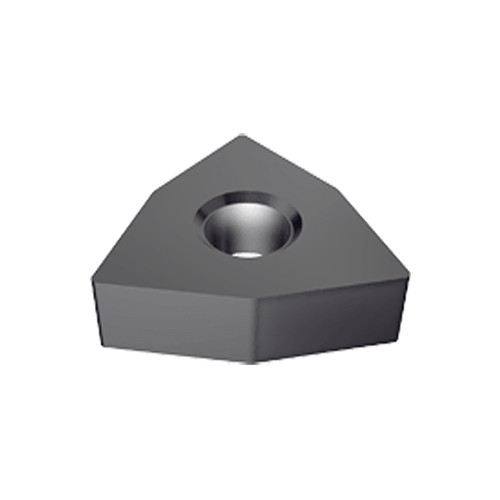

WNGA 431 S0825 IN16C
| Applicable Material | | Hard Materials | | Tool Type | Turn Ultra hard Inserts |
| Application | | Ext. 80° Trigon 95° Approach | Int. 80° Trigon 95° Approach | | Min D.O.C. | 0.004″ |
| Insert Style | WNGA | Depth of Cut Maximum (APMX) | 0.118″ |

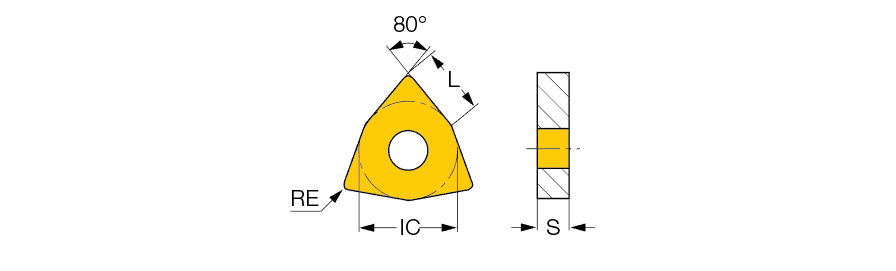

| Corner Radius (RE) | 0.0157″ | Min. Turning Feed (ft(min)) | 0.00196 ″/rev |
| Insert Size | 431 | Max. Turning Feed (ft(max)) | 0.01023 ″/rev |
| Cutting Edge Length (L) | 0.343″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 0.187″ | Chip Breaker Type | A |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Cutting Edge Material | Ceramic | Body Material | Carbide |
| Grade | IN16C |
Product Features
| Family Description | Negative 80° trigon double-sided ceramic inserts for machining cast iron, hardened steel and heat-resistant alloys | Country of Origin | Japan |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
5.3
