| Applicable Material | | Hard Materials | | Tool Type | Turn Ultra hard Inserts |
| Application | | Ext. 80° Diamond 95° Approach | | Min D.O.C. | 0.001″ |
| Insert Style | CNGG | Depth of Cut Maximum (APMX) | 0.02″ |
| Corner Radius (RE) | 0.0157″ | Min. Turning Feed (ft(min)) | 0.00196 ″/rev |
| Insert Size | 431 | Max. Turning Feed (ft(max)) | 0.01062 ″/rev |
| Cutting Edge Length (L) | 0.508″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 0.187″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Cutting Edge Material | Ceramic | Body Material | Carbide |
| Grade | IN16C |
Product Features

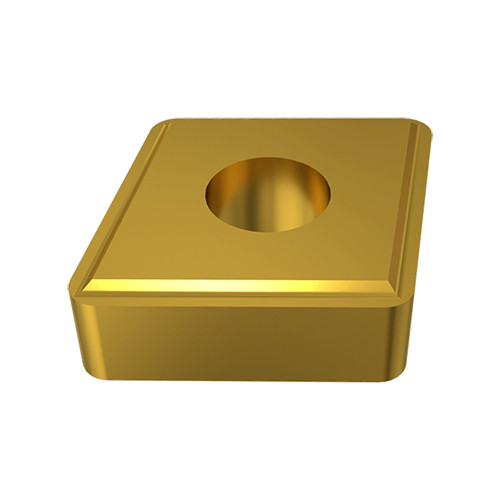

| Family Description | Negative 80° rhombic ground ceramic inserts with a chipbreaker for machining hardened steel and cast iron | Country of Origin | Japan |
